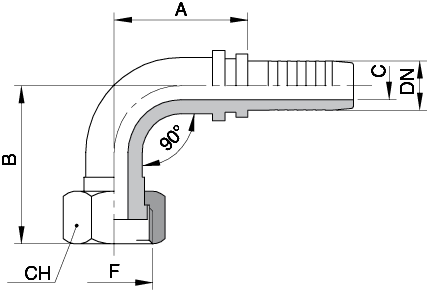

Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F Thread • Gewinde Filetto • Filetage • Rosca |
A |
B |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||||
|
53189104I |
06 |
1/4” |
9/16” - 18 |
32 |
32,5 |
4 |
17 |
|
53190104I |
06 |
1/4” |
11/16” - 16 |
32 |
31 |
4 |
22 |
|
53189105I |
08 |
5/16” |
11/16” - 16 |
5 |
22 |
||
|
53189106I |
10 |
3/8” |
11/16” - 16 |
41 |
34 |
7 |
22 |
|
53190106I |
10 |
3/8” |
13/16” - 16 |
41 |
36,5 |
7 |
24 |
|
53189108I |
12 |
1/2” |
13/16” - 16 |
46,5 |
44 |
9,5 |
24 |
|
53190108I |
12 |
1/2” |
1” - 14 |
47 |
46,5 |
9,5 |
30 |
|
53191108I |
12 |
1/2” |
1 3/16” - 12 |
9,5 |
36 |
||
|
53189110I |
16 |
5/8” |
1” - 14 |
50 |
44 |
12 |
30 |
|
53190110I |
16 |
5/8” |
1 3/16” - 12 |
58 |
48 |
12 |
36 |
|
53188112I |
19 |
3/4” |
1” - 14 |
53 |
56 |
14 |
30 |
|
53189112I |
19 |
3/4” |
1 3/16” - 12 |
53 |
54 |
14,5 |
36 |
|
53189116I |
25 |
1” |
1 7/16” - 12 |
76 |
65 |
20 |
41 |
FEMMINA ORFS 90° - SAE J1453 - Aertubi
FEMMINA ORFS 90° - SAE J1453
