Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
B |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||||
|
53245103I |
05 |
3/16" |
7/16" - 20 |
27,5 |
14 |
3 |
14 |
|
53245104I |
06 |
1/4" |
7/16" - 20 |
27,5 |
14 |
4 |
14 |
|
53246104I |
06 |
1/4" |
1/2" - 20 |
27,5 |
14 |
4 |
17 |
|
53247104I |
06 |
1/4" |
9/16" - 18 |
27,5 |
14,1 |
4 |
17 |
|
53245105I |
08 |
5/16" |
1/2" - 20 |
27,5 |
14 |
5,5 |
17 |
|
53246105I |
08 |
5/16" |
9/16" - 18 |
29,5 |
14,1 |
5,5 |
17 |
|
53245106I |
10 |
3/8" |
9/16" - 18 |
29 |
14,1 |
7 |
17 |
|
53246106I |
10 |
3/8" |
3/4" - 16 |
32 |
16,7 |
7 |
22 |
|
53247106I |
10 |
3/8" |
7/8" - 14 |
36 |
19,3 |
7 |
24 |
|
53245108I |
12 |
1/2" |
3/4" - 16 |
31 |
16,7 |
9,5 |
22 |
|
53246108I |
12 |
1/2" |
7/8" - 14 |
37 |
19,3 |
9,5 |
24 |
|
53247108I |
12 |
1/2" |
1 1/16"- 12 |
38,5 |
22 |
9,5 |
27 |
|
53245110I |
16 |
5/8" |
7/8" - 14 |
37 |
19,3 |
12,5 |
24 |
|
53245112I |
19 |
3/4" |
1 1/16"- 12 |
41 |
22 |
14,5 |
27 |
|
53246112I |
19 |
3/4" |
1 5/16"- 12 |
44 |
23,1 |
14,5 |
36 |
|
53245116I |
25 |
1" |
1 5/16"- 12 |
44 |
23,1 |
20 |
36 |
|
53246116I |
25 |
1" |
1 5/8"- 12 |
50 |
24,4 |
20 |
46 |
|
53245120I |
31 |
1 1/4" |
1 5/8" - 12 |
48 |
24,4 |
25,5 |
46 |
|
53245124I |
38 |
1 1/2" |
1 7/8" - 12 |
53,5 |
27,5 |
31,5 |
50 |

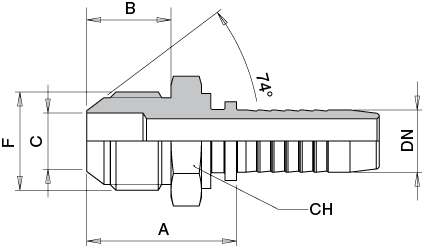

MASCHIO JIC - UNF CONO 74° SAE J514 - Aertubi
MASCHIO JIC - UNF CONO 74° SAE J514
