Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
B |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||||
|
53121103I |
05 |
3/16" |
7/16" - 20 |
15 |
8 |
3 |
17 |
|
53121104I |
06 |
1/4" |
7/16" - 20 |
15,6 |
8 |
4 |
17 |
|
53122104I |
06 |
1/4" |
1/2" - 20 |
16,7 |
8,5 |
4 |
17 |
|
53123104I |
06 |
1/4" |
9/16" - 18 |
18,5 |
10 |
4 |
19 |
|
53122105I |
08 |
5/16" |
1/2" - 20 |
17,4 |
8,5 |
5 |
17 |
|
53123105I |
08 |
5/16" |
9/16" - 18 |
17,4 |
10 |
5 |
19 |
|
53122106I |
10 |
3/8" |
9/16" - 18 |
20 |
10 |
7 |
19 |
|
53123106I |
10 |
3/8" |
3/4" - 16 |
20 |
11 |
7 |
24 |
|
53124106I |
10 |
3/8" |
7/8" - 14 |
21 |
12,8 |
7 |
27 |
|
53121108I |
12 |
1/2" |
3/4" - 16 |
20,6 |
11 |
9,5 |
24 |
|
53122108I |
12 |
1/2" |
7/8" - 14 |
21,5 |
12,8 |
9,5 |
27 |
|
53123108I |
12 |
1/2" |
1 1/16" - 12 |
23 |
15 |
9,5 |
32 |
|
53122110I |
16 |
5/8" |
7/8" - 14 |
21 |
11,5 |
12,5 |
27 |
|
53123110I |
16 |
5/8" |
1 1/16" - 12 |
23 |
14,4 |
12,5 |
32 |
|
53122112I |
19 |
3/4" |
1 1/16" - 12 |
25 |
14,5 |
14,5 |
32 |
|
53123112I |
19 |
3/4" |
1 5/16" - 12 |
25,5 |
14 |
14,5 |
41 |
|
53122116I |
25 |
1" |
1 5/16" - 12 |
27 |
15 |
20 |
41 |
|
53123116I |
25 |
1" |
1 5/8" - 12 |
32,5 |
15,5 |
20 |
50 |
|
53122120I |
31 |
1 1/4" |
1 5/8" - 12 |
27,5 |
15,5 |
25,5 |
50 |
|
53122124I |
38 |
1 1/2" |
1 7/8" - 12 |
36,5 |
18,5 |
31,5 |
55 |
|
53122132I |
51 |
2" |
2 1/2" - 12 |
45,5 |
25 |
43 |
70 |

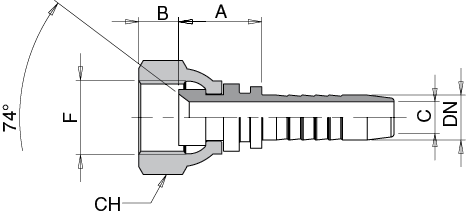

FEMMINA DIRITTA JIC SVASATA 74° FILETTO UNF SAE J514 - Aertubi
FEMMINA DIRITTA JIC SVASATA 74° FILETTO UNF SAE J514
