Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=NPT Thread • Gewinde Filetto • Filetage • Rosca |
A |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
|||||
|
53250103I |
05 |
3/16" |
1/8" - 27 |
20 |
3 |
14 |
|
53250104I |
06 |
1/4" |
1/8" - 27 |
20 |
4 |
14 |
|
53251104I |
06 |
1/4" |
1/4" - 18 |
27,5 |
4 |
14 |
|
53252104I |
06 |
1/4" |
3/8" - 18 |
27,5 |
4 |
19 |
|
53250105I |
08 |
5/16" |
1/4" - 18 |
29,5 |
5,5 |
14 |
|
53251105I |
08 |
5/16" |
3/8" - 18 |
28,5 |
5,5 |
19 |
|
53250106I |
10 |
3/8" |
3/8" - 18 |
28,5 |
7 |
19 |
|
53251106I |
10 |
3/8" |
1/2" - 14 |
34 |
7 |
22 |
|
53250108I |
12 |
1/2" |
1/2" - 14 |
36,5 |
9,5 |
22 |
|
53251108I |
12 |
1/2" |
3/4" - 14 |
35,5 |
9,5 |
27 |
|
53250110I |
16 |
5/8" |
3/4" - 14 |
7 |
12,5 |
27 |
|
53250112I |
19 |
3/4" |
3/4" - 14 |
36 |
14,5 |
27 |
|
53252112I |
19 |
3/4" |
1" - 11,5 |
47 |
14,5 |
36 |
|
53250116I |
25 |
1" |
1" - 11,5 |
47 |
20 |
36 |
|
53250120I |
31 |
1 1/4" |
1 1/4"-11,5 |
45,5 |
25 |
46 |
|
53250124I |
38 |
1 1/2" |
1 1/2"-11,5 |
45 |
31,5 |
50 |
|
53250132I |
51 |
2" |
2" - 11,5 |
54 |
43 |
65 |

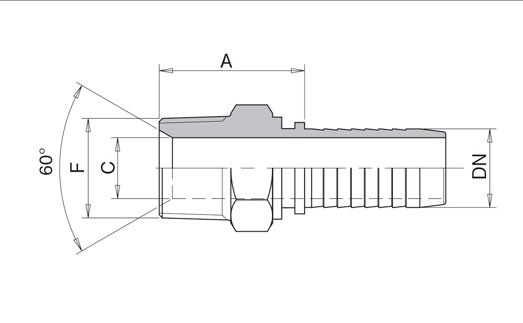

MASCHIO NPT SVASATO 60° SAE J516 - Aertubi
MASCHIO NPT SVASATO 60° SAE J516
