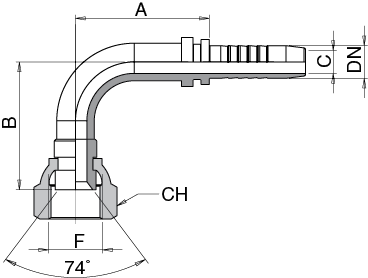

FEMMINA CURVA 90° JIC - SVASATA 74° FILETTO UNF SAE J514 - Aertubi

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=UNF/UN

Thread • Gewinde

Filetto • Filetage • Rosca

A

B

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

3/16"

7/16" - 20

29,5

27

3

17

1/4"

7/16" - 20

34

29

4

17

1/4"

1/2" - 20

34

31

4

17

1/4"

9/16" - 18

34

31

4

19

5/16"

1/2" - 20

33

29,5

5

17

5/16"

9/16" - 18

33

29,5

5

19

3/8"

9/16" - 18

42

39

7

19

3/8"

3/4" - 16

42

40

7

22

3/8"

7/8" - 14

42

40

7

27

1/2"

3/4" - 16

46

46

9,5

24

1/2"

7/8" - 14

46

46

9,5

27

5/8"

7/8" - 14

50

45,5

12

27

5/8"

1 1/16" - 12

50

49

12

32

3/4"

1 1/16" - 12

56

54

14

32

3/4"

1 5/16" - 12

70

60

14,5

41

1"

1 5/16" - 12

80

74

20

41

1 1/4"

1 5/8" - 12

101

94

25

50

1 1/2"

1 7/8" - 12

104,5

103

31,5

55
