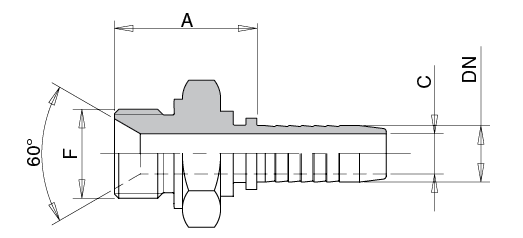

MASCHIO GAS CILINDRICO SVASATO 60°

MASCHIO GAS CILINDRICO SVASATO 60°

Code

Code

Codice

Code

Código

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=BSPP

Thread • Gewinde

Filetto • Filetage • Rosca

A

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

53141103I

05

3/16"

1/8" - 28

21

3

14

53142103I

05

3/16"

1/4" - 19

24

3

19

53141104I

06

1/4"

1/8" - 28

23

4

14

53142104I

06

1/4"

1/4" - 19

25

4

19

53143104I

06

1/4"

3/8" - 19

27,5

4

22

53141105I

08

5/16"

3/8" - 19

28,5

5,5

22

53141106I

10

3/8"

3/8" - 19

28,5

7

22

53142106I

10

3/8"

1/2" - 14

33,5

7

27

53141108I

12

1/2"

3/8" - 19

29

7

22

53142108I

12

1/2"

1/2" - 14

33

9,5

27

53143108I

12

1/2"

3/4" - 14

35

9,5

32

53141110I

16

5/8"

3/4" - 14

35

12,5

32

53141112I

19

3/4"

3/4" - 14

36

14,5

32

53142112I

19

3/4"

1" - 11

40,5

14,5

41

53141116I

25

1"

1" - 11

41

20

41

53142116I

25

1"

1 1/4" - 11

44,5

20

50

53141120I

31

1 1/4"

1 1/4" - 11

45

25

50

53142120I

31

1 1/4"

1 1/2" - 11

47,5

25

55

53141124I

38

1 1/2"

1 1/2" - 11

47

31

55

53141132I

51

2"

2" - 11

50

43

70
