Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
D |
A |
C |
||
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
|||
|
3000 PSI |
||||||
|
53200108I |
12 |
1/2" |
30,2 |
1/2" |
37,5 |
9,5 |
|
53200110I |
16 |
5/8" |
30,2 |
1/2" |
39 |
12,5 |
|
53201110I |
16 |
5/8" |
38,1 |
3/4" |
46,5 |
12,5 |
|
53200112I |
19 |
3/4" |
38,1 |
3/4" |
46,5 |
14,5 |
|
53201112I |
19 |
3/4" |
44,5 |
1" |
46,5 |
14,5 |
|
53200116I |
25 |
1" |
44,5 |
1" |
38 |
20 |
|
53201116I |
25 |
1" |
50,8 |
1 1/4" |
49 |
20 |
|
53200120I |
31 |
1 1/4" |
50,8 |
1 1/4" |
54 |
25,5 |
|
53201120I |
31 |
1 1/4" |
60,3 |
1 1/2" |
50 |
25,5 |
|
53200124I |
38 |
1 1/2" |
60,3 |
1 1/2" |
60 |
31,5 |
|
53201124I |
38 |
1 1/2" |
71,4 |
2" |
62 |
31,5 |
|
53200132I |
51 |
2" |
71,4 |
2" |
48 |
43 |
|
53200141I |
63 |
2 1/2" |
84,3 |
2 1/2" |
83 |
54 |
|
6000 PSI |
||||||
|
53300108I |
12 |
1/2" |
31,7 |
1/2" |
39 |
9,5 |
|
53300110I |
16 |
5/8" |
41,3 |
3/4" |
41 |
12,5 |
|
53300112I |
19 |
3/4" |
41,3 |
3/4" |
48 |
14,5 |
|
53301112I |
19 |
3/4" |
47,6 |
1" |
65,5 |
14,5 |
|
53300116I |
25 |
1" |
47,6 |
1" |
68 |
20 |
|
53301116I |
25 |
1" |
54 |
1 1/4" |
50,5 |
20 |
|
53300120I |
31 |
1 1/4" |
54 |
1 1/4" |
70 |
25,5 |
|
53301120I |
31 |
1 1/4" |
63,5 |
1 1/2" |
58 |
25,5 |
|
53300124I |
38 |
1 1/2" |
63,5 |
1 1/2" |
68 |
31,5 |
|
53300132I |
51 |
2" |
79,4 |
2" |
86 |
43 |

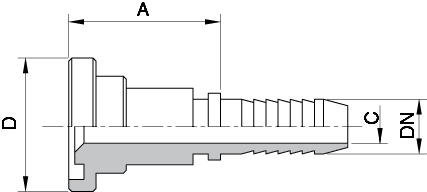

FLANGIA DIRITTA 3000 - 6000 PSI SAE J518 - Aertubi
FLANGIA DIRITTA 3000 - 6000 PSI SAE J518
