Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
D |
A |
B |
C |
||
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||
|
3000 PSI |
|||||||
|
53590112I |
19 |
3/4" |
38,1 |
3/4" |
74,5 |
71 |
14,5 |
|
53589112I |
19 |
3/4" |
44,5 |
1" |
77 |
71 |
14,5 |
|
53590116I |
25 |
1" |
44,5 |
1" |
82 |
75 |
20 |
|
53589116I |
25 |
1" |
50,8 |
1 1/4" |
105 |
88 |
20 |
|
53590120I |
31 |
1 1/4" |
50,8 |
1 1/4" |
102 |
91,5 |
25 |
|
53589120I |
31 |
1 1/4" |
60,3 |
1 1/2" |
123 |
95 |
25 |
|
53590124I |
38 |
1 1/2" |
60,3 |
1 1/2" |
122,5 |
105 |
31 |
|
53589124I |
38 |
1 1/2" |
71,4 |
2" |
124 |
121 |
31 |
|
53590132I |
51 |
2" |
71,4 |
2" |
144 |
137 |
41 |
|
6000 PSI |
|||||||
|
53591112I |
19 |
3/4" |
41,3 |
3/4" |
74 |
60 |
14,5 |
|
53592112I |
19 |
3/4" |
47,6 |
1" |
77 |
72 |
14,5 |
|
53591116I |
25 |
1" |
47,6 |
1" |
82 |
77 |
20 |
|
53592116I |
25 |
1" |
54 |
1 1/4" |
108 |
90 |
20 |
|
53591120I |
31 |
1 1/4" |
54 |
1 1/4" |
102 |
93,5 |
25 |
|
53592120I |
31 |
1 1/4" |
63,5 |
1 1/2" |
124 |
96 |
25 |
|
53591124I |
38 |
1 1/2" |
63,5 |
1 1/2" |
122,5 |
107 |
31 |
|
53592124I |
38 |
1 1/2" |
79,4 |
2" |
124 |
121,5 |
31 |
|
53591132I |
51 |
2" |
79,4 |
2" |
144 |
142 |
41 |

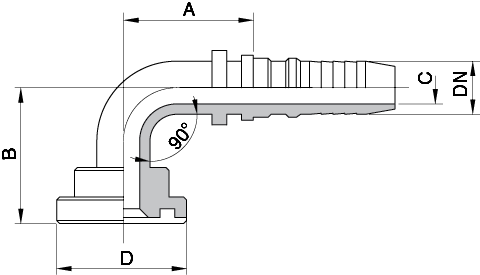

FLANGIA CURVA 90° 3000 - 6000 PSI SAE J518 - Aertubi
FLANGIA CURVA 90° 3000 - 6000 PSI SAE J518
