Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
|||||
|
53535112I |
19 |
3/4" |
1 1/16" - 12 |
35 |
14,5 |
32 |
|
53536112I |
19 |
3/4" |
1 5/16" - 12 |
34 |
14,5 |
41 |
|
53535116I |
25 |
1" |
1 5/16" - 12 |
34 |
20 |
41 |
|
53536116I |
25 |
1" |
1 5/8" - 12 |
27 |
20 |
50 |
|
53535120I |
31 |
1 1/4" |
1 5/8" - 12 |
37 |
25 |
50 |
|
53536120I |
31 |
1 1/4" |
1 7/8" - 12 |
33 |
25 |
60 |
|
53535124I |
38 |
1 1/2" |
1 7/8" - 12 |
41,5 |
31,5 |
60 |
|
53535132I |
51 |
2" |
2 1/2" - 12 |
67,5 |
42 |
70 |

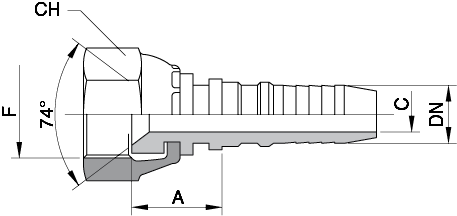

FEMMINA DIRITTA JIC SVASATA 74° - SAE J 514 FILETTO UNF - Aertubi
FEMMINA DIRITTA JIC SVASATA 74° - SAE J 514 FILETTO UNF
