Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
B |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||||
|
53690112I |
19 |
3/4" |
1 1/16" - 12 |
79 |
72 |
14,5 |
32 |
|
53691112I |
19 |
3/4" |
1 5/16" - 12 |
78 |
79 |
14,5 |
41 |
|
53690116I |
25 |
1" |
1 5/16" - 12 |
85 |
86 |
20 |
41 |
|
53691116I |
25 |
1" |
1 5/8" - 12 |
107 |
93 |
20 |
50 |
|
53690120I |
31 |
1 1/4" |
1 5/8" - 12 |
103 |
96 |
25 |
50 |
|
53691120I |
31 |
1 1/4" |
1 7/8" - 12 |
125 |
98 |
25 |
60 |
|
53690124I |
38 |
1 1/2" |
1 7/8" - 12 |
122 |
107 |
31 |
60 |
|
53690132I |
51 |
2" |
2 1/2" - 12 |
145 |
151,5 |
41 |
70 |

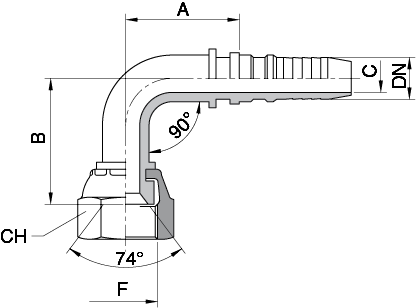

FEMMINA CURVA 90°JIC - SVASATA 74˚ FILETTO UNF - SAE J 514 - Aertubi
FEMMINA CURVA 90°JIC - SVASATA 74˚ FILETTO UNF - SAE J 514
