Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
|||||
|
53520112I |
19 |
3/4" |
1 1/16" - 12 |
48,5 |
14,5 |
30 |
|
53520116I |
25 |
1" |
1 5/16" - 12 |
48 |
20 |
36 |
|
53520120I |
31 |
1 1/4" |
1 5/8" - 12 |
48 |
25 |
46 |
|
53520124I |
38 |
1 1/2" |
1 7/8" - 12 |
57 |
31,5 |
50 |
|
53520132I |
51 |
2" |
2 1/2" - 12 |
60 |
42 |
65 |

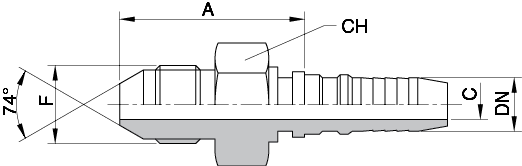

MASCHIO JIC - UNF CONO 74° SAE J514 - Aertubi
MASCHIO JIC - UNF CONO 74° SAE J514
