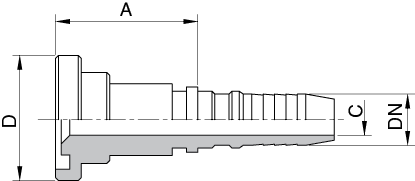

Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
D |
A |
C |
||
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
|||
|
3000 PSI |
||||||
|
53510112I |
19 |
3/4" |
38,1 |
3/4" |
41 |
14,5 |
|
53511112I |
19 |
3/4" |
44,5 |
1" |
44,5 |
14,5 |
|
53510116I |
25 |
1" |
44,5 |
1" |
52,5 |
20 |
|
53511116I |
25 |
1" |
50,8 |
1 1/4" |
53 |
20 |
|
53510120I |
31 |
1 1/4" |
50,8 |
1 1/4" |
53 |
25 |
|
53511120I |
31 |
1 1/4" |
60,3 |
1 1/2" |
50,5 |
25 |
|
53510124I |
38 |
1 1/2" |
60,3 |
1 1/2" |
77,5 |
31,5 |
|
53511124I |
38 |
1 1/2" |
71,4 |
2" |
72 |
31,5 |
|
53510132I |
51 |
2" |
71,4 |
2" |
72 |
42 |
|
6000 PSI |
||||||
|
53515112I |
19 |
3/4" |
41,3 |
3/4" |
52 |
14,5 |
|
53516112I |
19 |
3/4" |
47,6 |
1" |
44,5 |
14,5 |
|
53515116I |
25 |
1" |
47,6 |
1" |
64 |
20 |
|
53516116I |
25 |
1" |
54 |
1 1/4" |
54,5 |
20 |
|
53515120I |
31 |
1 1/4" |
54 |
1 1/4" |
75 |
25 |
|
53516120I |
31 |
1 1/4" |
63,5 |
1 1/2" |
75,5 |
25 |
|
53515124I |
38 |
1 1/2" |
63,5 |
1 1/2" |
103 |
31,5 |
|
53516124I |
38 |
1 1/2" |
79,4 |
2" |
75 |
31,5 |
|
53515132I |
51 |
2" |
79,4 |
2" |
85 |
42 |
FLANGIA DIRITTA 3000 - 6000 PSI SAE J518 - Aertubi
FLANGIA DIRITTA 3000 - 6000 PSI SAE J518
