Code Code Codice Code Código |
Pressure Druck Pressione Pression Presión |

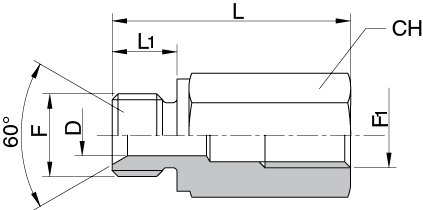

F=BSPP Thread • Gewinde Filetto • Filetage Rosca |
F1=BSPP Thread • Gewinde Filetto • Filetage Rosca |
L |
L1 |
D |
Ch |
301.2I |
380 |
1/8" - 28 |
1/8" - 28 |
30 |
8 |
4,5 |
17 |
301.4I |
380 |
1/4" - 19 |
1/4" - 19 |
41 |
10 |
6 |
19 |
301.6I |
380 |
3/8" - 19 |
3/8" - 19 |
52 |
12 |
9 |
22 |
301.8I |
380 |
1/2" - 14 |
1/2" - 14 |
59 |
14 |
13 |
27 |
301.12I |
380 |
3/4" - 14 |
3/4" - 14 |
55 |
16 |
17,5 |
32 |
301.12IL80 |
350 |
3/4" - 14 |
3/4" - 14 |
80 |
16 |
17,5 |
32,5 |
301.16I |
380 |
1" - 11 |
1" - 11 |
70 |
18 |
23 |
41 |
301.20I |
180 |
1 1/4" - 11 |
1 1/4" - 11 |
75 |
20 |
25 |
50 |
