Code Code Codice Code Código |
Pressure Druck Pressione Pression Presión |
F=BSPT Thread • Gewinde Filetto • Filetage Rosca |
F1=BSPT Thread • Gewinde Filetto • Filetage Rosca |

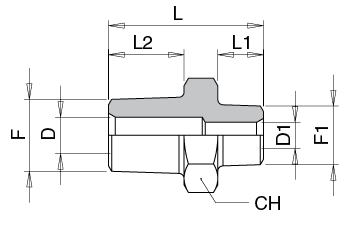

L |
L1 |
L2 |
D |
D1 |
Ch |
|
205.4.2I |
400 |
1/4" - 19 |
1/8" - 28 |
26 |
12 |
8 |
5 |
5 |
14 |
|
205.6.4I |
400 |
3/8" - 19 |
1/4" - 19 |
31 |
12 |
12 |
8 |
8 |
19 |
|
205.8.6I |
400 |
1/2" - 14 |
3/8" - 19 |
34 |
19 |
12 |
11,5 |
8 |
24 |
|
205.12.8I |
400 |
3/4" - 14 |
1/2" - 14 |
49 |
19 |
19 |
17 |
11,5 |
27 |
|
205.16.12I |
400 |
1" - 11 |
3/4" - 14 |
45 |
18 |
19 |
22,5 |
17 |
36 |
|
205.20.16I |
200 |
1 1/4" - 11 |
1" - 11 |
50 |
20 |
18 |
29 |
22,5 |
45 |
|
205.24.20I |
200 |
1 1/2" - 11 |
1 1/4" - 11 |
56 |
22 |
20 |
33,5 |
33,5 |
50 |
NIPPLO MASCHIO RIDOTTO FILETTATURA GAS CONICA BSPT - Aertubi
NIPPLO MASCHIO RIDOTTO FILETTATURA GAS CONICA BSPT
