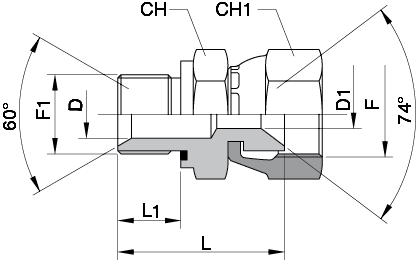

Code Code Codice Code Código |
Pressure Druck Pressione Pression Presión |
F=UNF/UN Thread • Gewinde Filetto • Filetage Rosca |
F1=BSPP Thread • Gewinde Filetto • Filetage Rosca |
L |
L1 |
D |
D1 |
Ch1 |
Ch |
|
296.4.2I |
350 |
7/16" - 20 |
1/8" - 28 |
25 |
8 |
4,5 |
4,5 |
17 |
14 |
|
296.4.4I |
350 |
7/16" - 20 |
1/4" - 19 |
29 |
12 |
4,5 |
4,5 |
17 |
19 |
|
296.5.4I |
350 |
1/2" - 20 |
1/4" - 19 |
29,5 |
12 |
5 |
5 |
17 |
19 |
|
296.5.6I |
350 |
1/2" - 20 |
3/8" - 19 |
30,5 |
12 |
7 |
5 |
17 |
22 |
|
296.6.4I |
350 |
9/16" - 18 |
1/4" - 19 |
30 |
12 |
6 |
6 |
19 |
19 |
|
296.6.6I |
350 |
9/16" - 18 |
3/8" - 19 |
30 |
12 |
7 |
7 |
19 |
22 |
|
296.6.8I |
350 |
9/16" - 18 |
1/2" - 14 |
34 |
14 |
12,5 |
7 |
19 |
27 |
|
296.8.4I |
350 |
3/4" - 16 |
1/4" - 19 |
31 |
12 |
6 |
9 |
24 |
19 |
|
296.8.6I |
350 |
3/4" - 16 |
3/8" - 19 |
33,5 |
12 |
9 |
9 |
24 |
22 |
|
296.8.8I |
350 |
3/4" - 16 |
1/2" - 14 |
36 |
14 |
10 |
10 |
24 |
27 |
|
296.8.12I |
350 |
3/4" - 16 |
3/4" - 14 |
39 |
16 |
15 |
10 |
24 |
32 |
|
296.10.8I |
350 |
7/8" - 14 |
1/2" - 14 |
34 |
14 |
12,5 |
12,5 |
27 |
27 |
|
296.10.12I |
350 |
7/8" - 14 |
3/4" - 14 |
41 |
16 |
15 |
12,5 |
27 |
32 |
|
296.12.12I |
350 |
1 1/16" - 12 |
3/4" - 14 |
40 |
16 |
15 |
15 |
32 |
32 |
|
296.12.16I |
350 |
1 1/16" - 12 |
1" - 11 |
42,5 |
18 |
21 |
15 |
32 |
41 |
|
296.16.16I |
280 |
1 5/16" - 12 |
1" - 11 |
45 |
18 |
21 |
21 |
41 |
41 |
|
296.16.20I |
210 |
1 5/16" - 12 |
1 1/4" - 11 |
48 |
20 |
29 |
21 |
41 |
50 |
|
296.20.20I |
210 |
1 5/8" - 12 |
1 1/4" - 11 |
53 |
20 |
27,5 |
27,5 |
50 |
50 |
|
296.24.20I |
210 |
1 7/8" - 12 |
1 1/4" - 11 |
55 |
20 |
29 |
29 |
55 |
55 |
ADATTAT. MASC. GAS CIL. 60° - FEMM. GIREV. JIC 37° - Aertubi
ADATTAT. MASC. GAS CIL. 60° - FEMM. GIREV. JIC 37°
