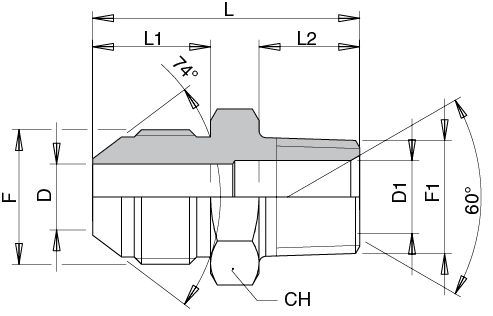

NIPPLO MASCHIO JIC 37° - MASCHIO NPT - Aertubi

NIPPLO MASCHIO JIC 37° - MASCHIO NPT

Code

Code

Codice

Code

Código

Pressure

Druck

Pressione

Pression

Presión

F=UNF/UN

Thread • Gewinde

Filetto • Filetage

Rosca

F1=NPT

Thread • Gewinde

Filetto • Filetage

Rosca

L

L1

L2

D

D1

Ch

295.4.4I

350

7/16" - 20

1/4" - 18

33

14

12

4

4

14

295.6.6I

350

9/16" - 18

3/8" - 18

30,7

14

12

6

6

19

295.8.8I

350

3/4" - 16

1/2" - 14

39,7

17

14

9,5

9,5

22

295.12.12I

350

1 1/16" - 12

3/4" - 14

48,3

22

16

15

15

27

295.16.16I

280

1 5/16" - 12

1" - 11,5

51

23

18

21

21

36

295.20.20I

210

1 5/8" - 12

1 1/4" - 11,5

56,5

24,3

20

26,5

31,7

46

295.24.24I

210

1 7/8" - 12

1 1/2" - 11,5

64

27,5

22

32

32

50

295.4.2I

350

7/16" - 20

1/8" - 27

29

14

8

4

4

12

295.4.6I

350

7/16" - 20

3/8" - 18

32,7

14

12

4

9

19

295.5.4I

350

1/2" - 20

1/4" - 18

33

14

12

5

5

14

295.5.6I

350

1/2" - 20

3/8" - 18

32,7

14

12

5

9

19

295.6.4I

350

9/16" - 18

1/4" - 18

31

14

12

6

6

17

295.6.8I

350

9/16" - 18

1/2" - 14

37

14

14

7,5

13

22

295.8.6I

350

3/4" - 16

3/8" - 18

35,7

17

12

9

9

19

295.8.12I

350

3/4" - 16

3/4" - 14

43,2

17

16

9,5

17

27

295.10.8I

350

7/8" - 14

1/2" - 14

42

19,5

14

12

12

24

295.10.12I

350

7/8" - 14

3/4" - 14

44,2

19,5

16

12

18

27

295.12.8I

350

1 1/16" - 12

1/2" - 14

46,2

22

14

15

13,5

27

295.12.16I

350

1 1/16" - 12

1" - 11,5

50,5

22

18

15

21

36

295.16.8I

280

1 5/16" - 12

1/2" - 14

47,2

23

14

21

13,5

36

295.16.12I

280

1 5/16" - 12

3/4" - 14

49

23

16

21

18

36

295.20.16I

210

1 5/8" - 12

1" - 11,5

55

24,3

18

26,5

21

46

295.20.24I

210

1 5/8" - 12

1 1/2" - 11,5

60,8

24,3

22

26,5

38

50
